Horizontal Pressure Leaf Filter
- Home
- Filters
- Horizontal Pressure Leaf Filter

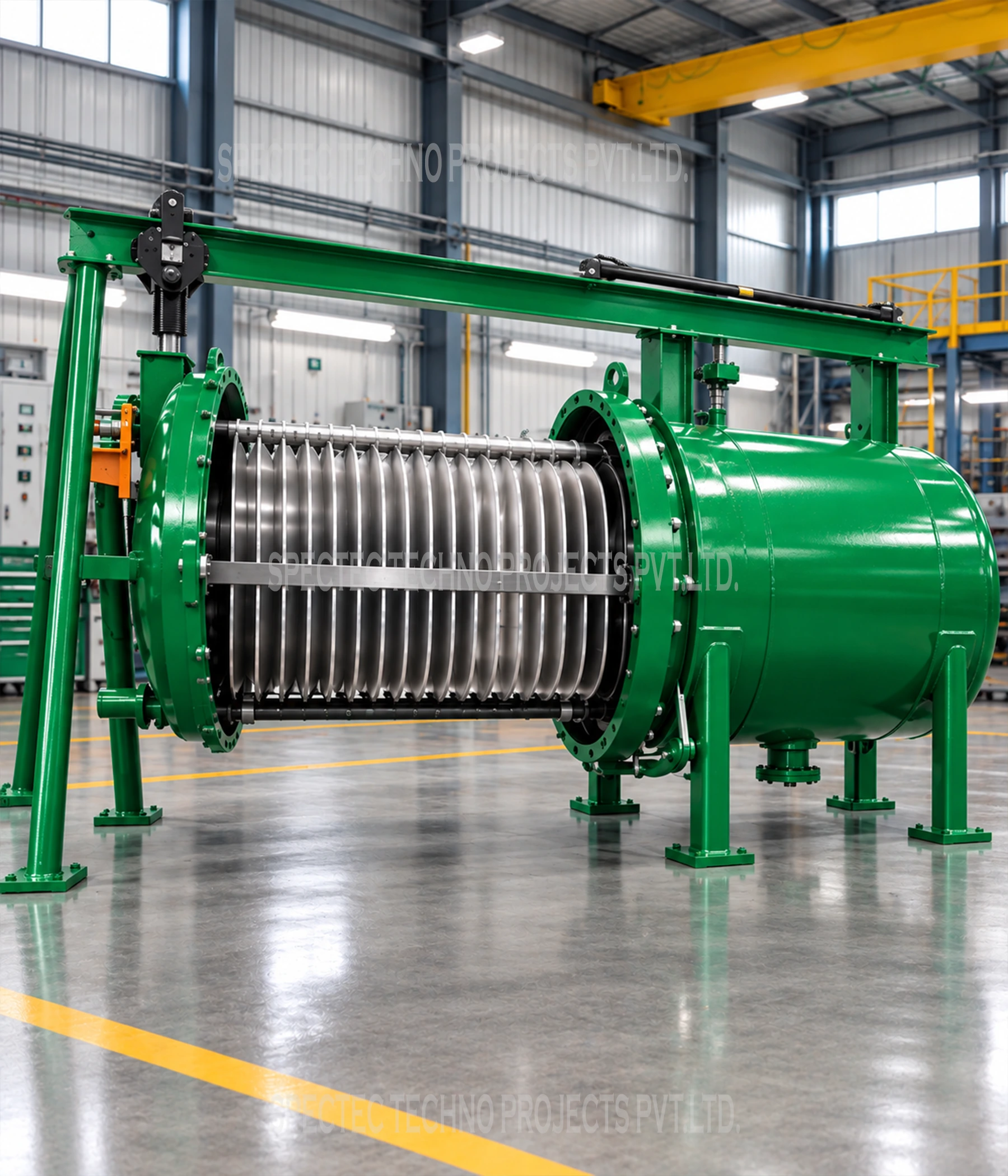

The horizontal leaf filter (shell retraction) consist of a horizontal cylindrical vessel with special bonnet wedged lock closure & neoprene seal. The retractable filter shell is mounted on 4 external mounted wheel assemblies and retraction is accomplished by hydraulic cylinders complete with hydraulic power pack. The hydraulic cylinders are connected to the power pack by high-pressure flexible rubber hoses/ SS tubings.
All nozzle connections are mounted on fixed head of filter vessel & to open & close the filter vessel, during cake discharge no connections have to be disconnected.
To avoid opening under pressure, appropriate interlocking is provided, if process.
Horizontal pressure leaf filters (HPLF) are designed for high flow rates and batch operation. HPLF are used when the filter cake is sticky & difficult to remove.
Read More for Related Refinery Projects
Discover related refinery projects and processing solutions developed by Spectech India, showcasing our expertise in designing, manufacturing, and delivering high-performance industrial systems.
Micro Polishing Filter
Automatic Gravity Filter
Strainers
Membrane Filter
Have questions? Find answers here!
Find quick, expert answers regarding oilseed pressing, physical vs. chemical refining, winterization needs, and Spectec’s factory locations.
What is the working principle of an oil extraction machine?
The working principle of an oil extraction machine involves applying mechanical force or using solvents to separate oil from seeds, nuts, or other oil-bearing materials.
